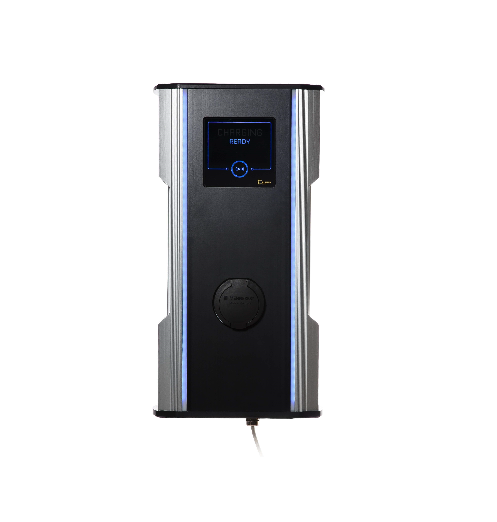

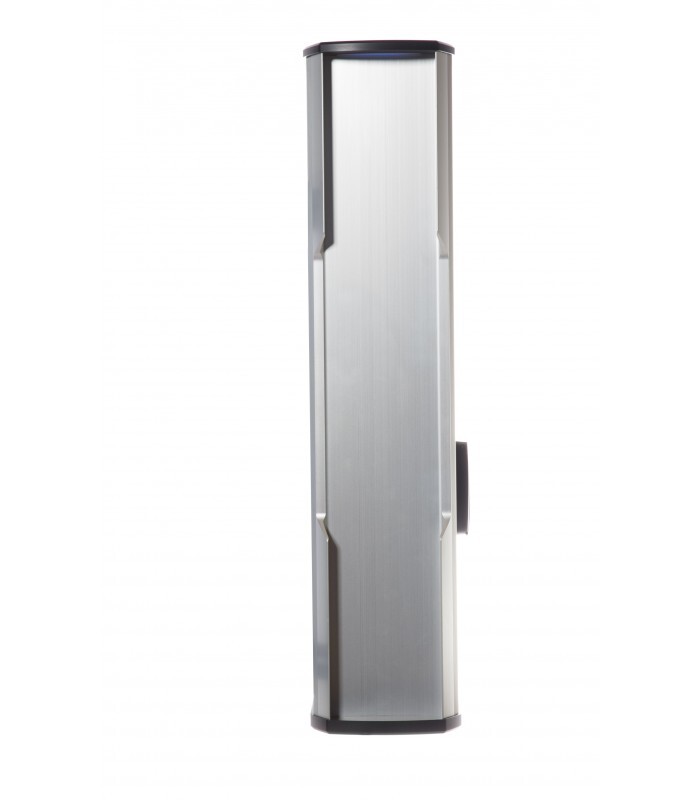

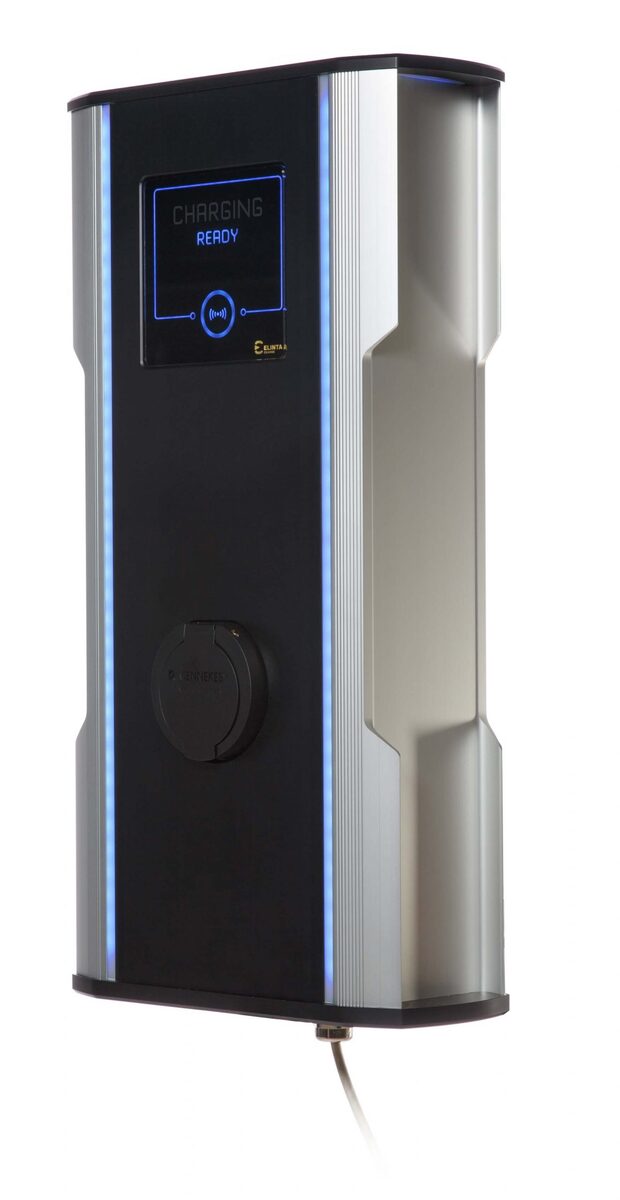

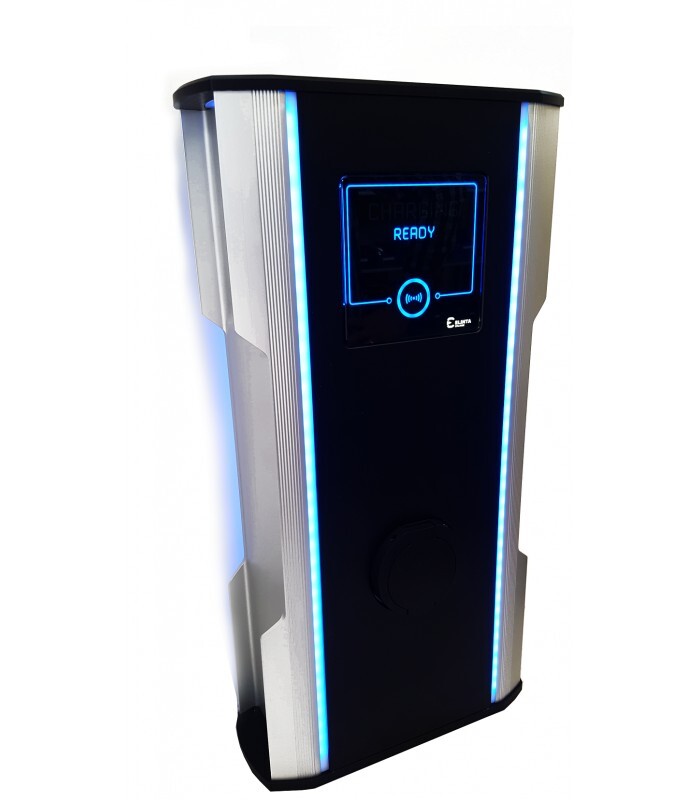

EV Charging station – City Charge Mini
Click to enlarge
EV Charging station – City Charge MiniEV Charging station – City Charge MiniEV Charging station – City Charge MiniEV Charging station – City Charge Mini

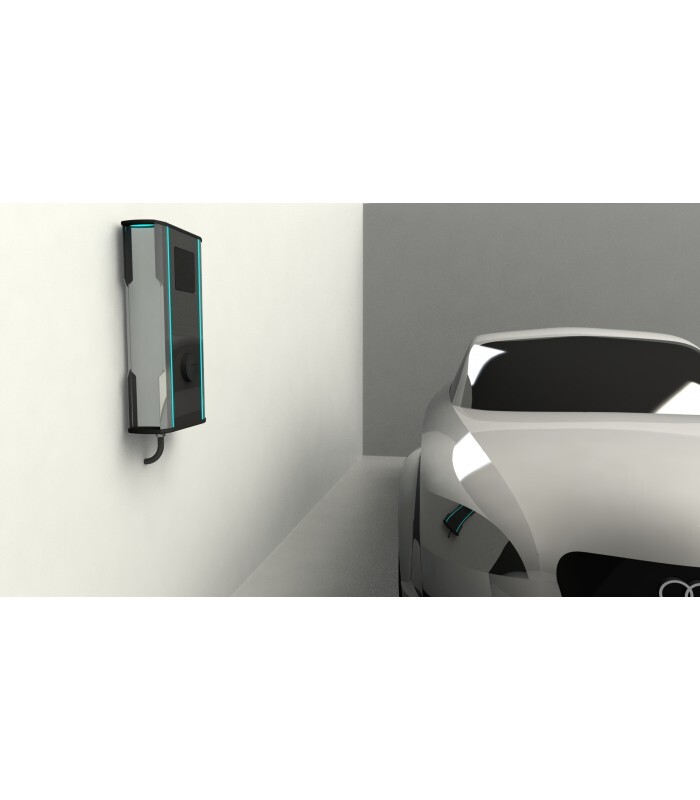

Whether you are looking to install a charger at home, the office or a public place, City Charge Mini EV charging station is designed for that. You have a long life and high reliability. City Charge Mini is available in 2-Phase 16A or 32A versions, depends on the power source provided.

Ev charging station – City Charge Mini is well-suited for any commercial or public location. The design would perfectly fit city centers, shopping malls, restaurants, hotels and other public parking areas. It is classified as a fast Mode 3 charging station with the ability to provide up to 22 kW of power using Type 2 charging socket. City Charge Mini has top quality electronics with integrated climate control ensures the highest reliability even in the worst weather conditions. Also is available as a stand-alone model with a user-friendly RFID identification for small, local charging network or it can be integrated into an existing charging network using Ethernet cable or 3G module or even WiFi.

EV charging station features:

  • Mode 3, Type 2 up to 22 or 2×2,7 kW using Type 2 charging socket
  • Integrated energy meter
  • RFID authorization
  • Robust aluminum casing
  • 3G / WiFi / Ethernet / OCPP communication
  • Bright animated LED screen (visible even in the direct sunlight)
  • Attractive design
  • Elios.cloud web administration
Weight 21 kg
Dimensions 350 × 670 × 150 mm
Socket Type

Mode 2—CEE 7/4 (Schuko), Mode 3—IEC 62196 (Type 2)

Power

3.6 kW, 7.2 kW, 11 kW, 22 kW

Power Supply

1-Phase, 3-Phase

Energy Meter

Digital with backlight

RFID User Access Control

Optional

Communication

3G, WiFi, Ethernet, OCPP, Elios.cloud

LED Screen

Integrated

LED Status Indication

Integrated

Installation

Wall mounting

Operational Temperature

-30 °C to +50 °C

Degree of Protection

IP54

Impact Resistance

IK10

Vandalism-Proof

Yes

Housing

Aluminium

UV Resistant

Yes

Certificate

CE

Charging Cable Locking

Optional

Overcurrent Protection

Integrated

Leakage Current Protection

Integrated

Warranty

24 months
