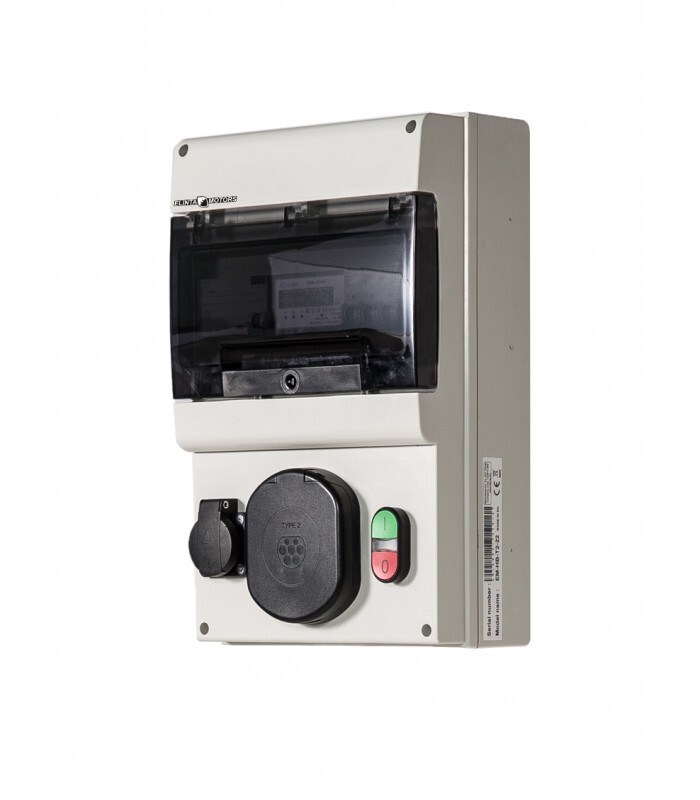

The Homebox EV charging station is designed to be used at home or office, ensuring high reliability and long life. This charging station is available in 3—Phase 16A or 32A versions, depending on the power source provided.
EV Charging Station – Homebox is designed to be a simple and cost-effective solution for fast, up to 22 kW EV charging. HomeBox can be used in garages, parking lots and other private areas, where no authentication is required. With integrated overcurrent and leakage current protections it can be installed as a standalone unit.
EV charging station features:
• Simple and professional
• Mode 3, Type 2 Up to 22 kW
• Simple installation
| Weight | 6.2 kg |
|---|---|
| Dimensions | 256 × 400 × 140 mm |
| Socket Type |
Mode 2—CEE 7/4 (Schuko), Mode 3—IEC 62196 (Type 2) |
| Power |
3.6 kW, 7.2 kW, 11 kW, 22 kW |
| Power Supply |
1-Phase, 3-Phase |
| Energy Meter |
Digital with backlight |
| RFID User Access Control |
Optional |
| Communication |
3G, WiFi, Ethernet, OCPP, Elios.cloud |
| LED Status Indication |
Integrated |
| Installation |
Wall mounting |
| Operational Temperature |
-30 °C to +50 °C |
| Degree of Protection |
IP54 |
| Impact Resistance |
IK08 |
| Vandalism-Proof |
No |
| Housing |
Plastic |
| UV Resistant |
Yes |
| Certificate |
CE |
| Standard |
IEC 61851-1 |
| Charging Cable Locking |
Optional |
| Overcurrent Protection |
Integrated |
| Leakage Current Protection |
Integrated |
| Warranty |
24 months |
