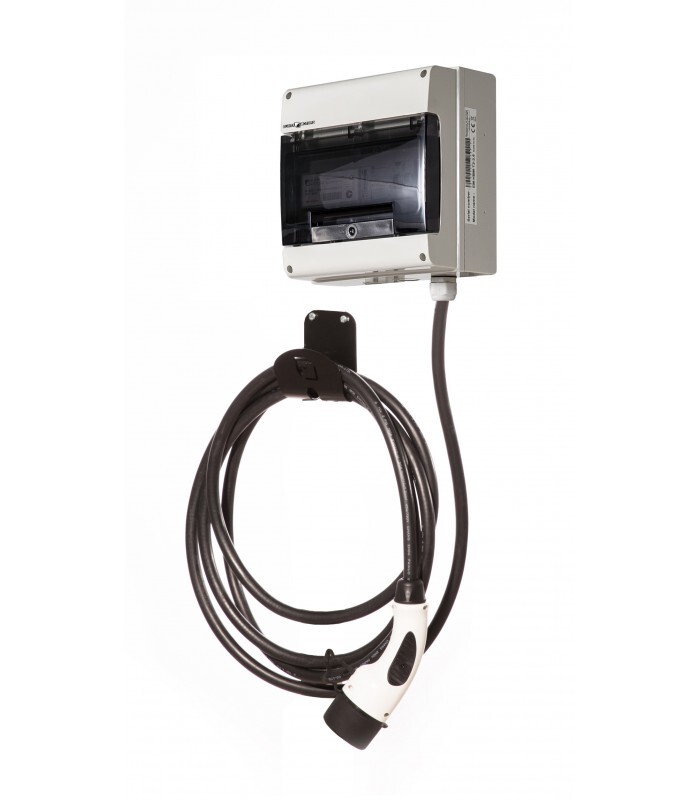

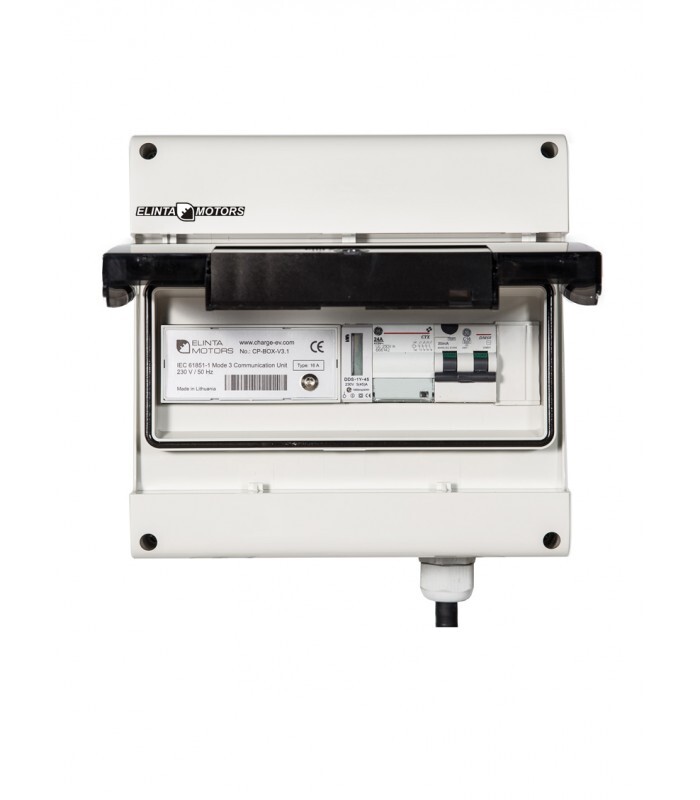

The Homebox Mini Type 2 EV charging station is designed to be used at home or at the office, ensuring high reliability and long life. This charging station is available in 1-phase 16A or 32A versions, depending on the power source provided.
EV Charging Station – HomeBox mini Type 2 is designed to be a simple and cost-effective solution for fast EV charging. HomeBox can be used in garages, parking lots and other private areas, where no authentication is required. The bright red status light on the Start/Stop buttons is visible even in direct sunlight. Integrated energy meter with LED back-light is convenient for separating your EV from the domestic energy bill.
EV charging station features:
- Simple and professional
- 3.6 kW or 7.2 kW
- Integrated charging cable Type 2 + energy meter
- Simple installation
| Weight | 5 kg |
|---|---|
| Dimensions | 256 × 140 × 250 mm |
| Socket Type |
Mode 2—CEE 7/4 (Schuko), Mode 3—IEC 62196 (Type 2) |
| Power |
3.6 kW, 7.2 kW |
| Power Supply |
1-Phase |
| Energy Meter |
Digital with backlight |
| RFID User Access Control |
Optional |
| LED Status Indication |
Integrated |
| Installation |
Wall mounting |
| Operational Temperature |
-30 °C to +50 °C |
| Degree of Protection |
IP54 |
| Impact Resistance |
IK08 |
| Vandalism-Proof |
No |
| Housing |
Plastic |
| UV Resistant |
Yes |
| Certificate |
CE |
| Standard |
IEC 61851-1 |
| Charging Cable Locking |
Optional |
| Overcurrent Protection |
Integrated |
| Leakage Current Protection |
Integrated |
| Warranty |
24 months |
