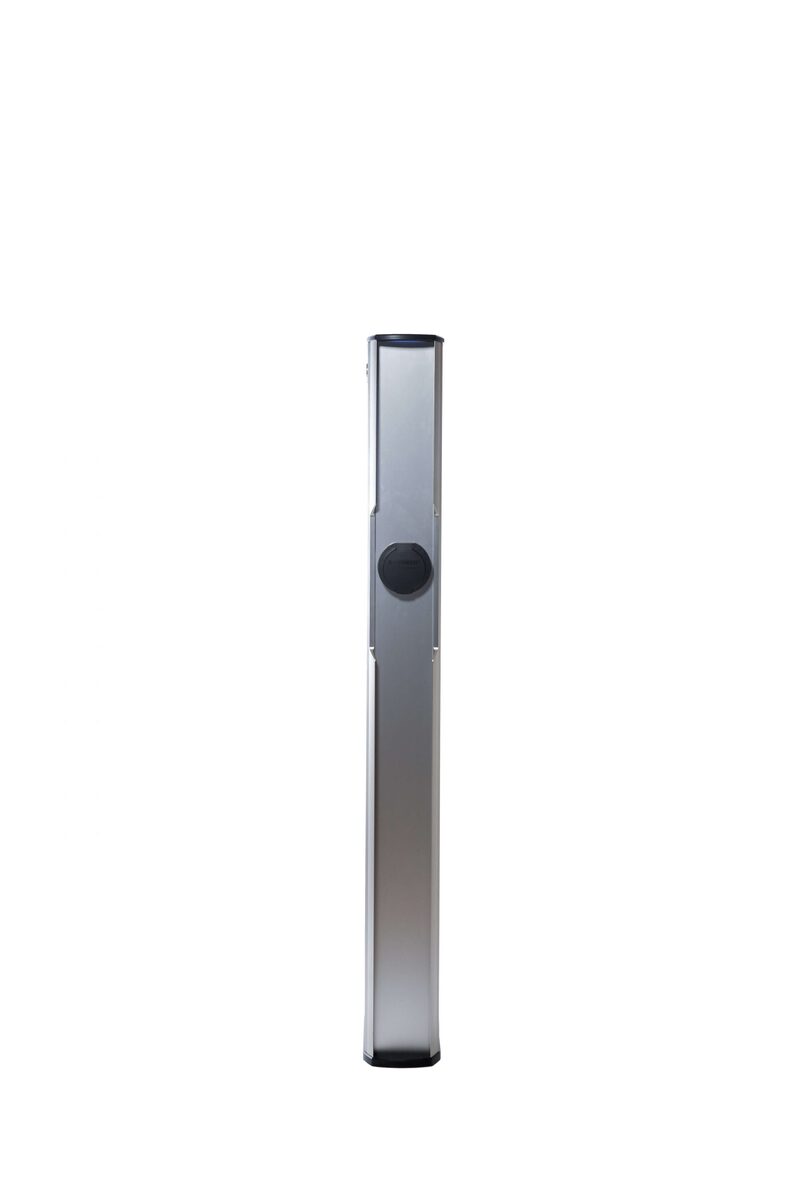

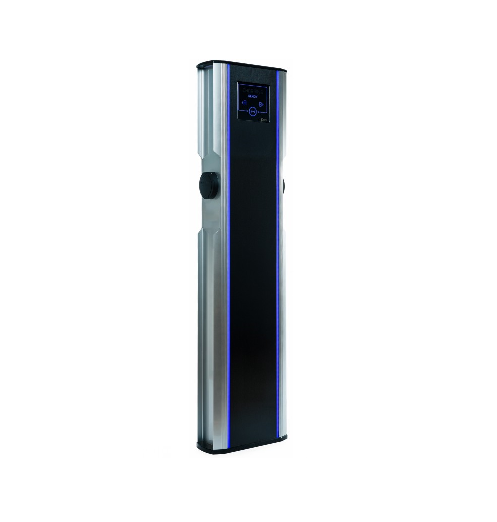

EV Charging Station – City Charge V2
Click to enlarge
EV Charging Station – City Charge V2EV Charging Station – City Charge V2EV Charging Station – City Charge V2
CityCharge V2 EV charging station is well-suited for any commercial or public location. It is classified as a fast Mode 3 charging station with the ability to provide up to 44 kW of power using two Type 2 charging sockets.

EV charging station – CityCharge V2 is well-suited for any commercial or public location. The design would perfectly fit city centers, shopping malls, restaurants, hotels and other public parking areas. It is manufactured using only the highest quality materials. Top-quality electronics with integrated climate control ensures the highest reliability even in the worst weather conditions. Bright animated LED screen and sidebars are visible even in the direct sunlight while giving a futuristic impression and ability to be seen from a long distance at night. Available as a stand-alone model with a user-friendly RFID identification for small, local charging network or it can be integrated into an existing charging network using Ethernet cable or 3G module.



EV charging stations features:

• Mode 3, Type 2 22 kW x 2
• Integrated energy meter

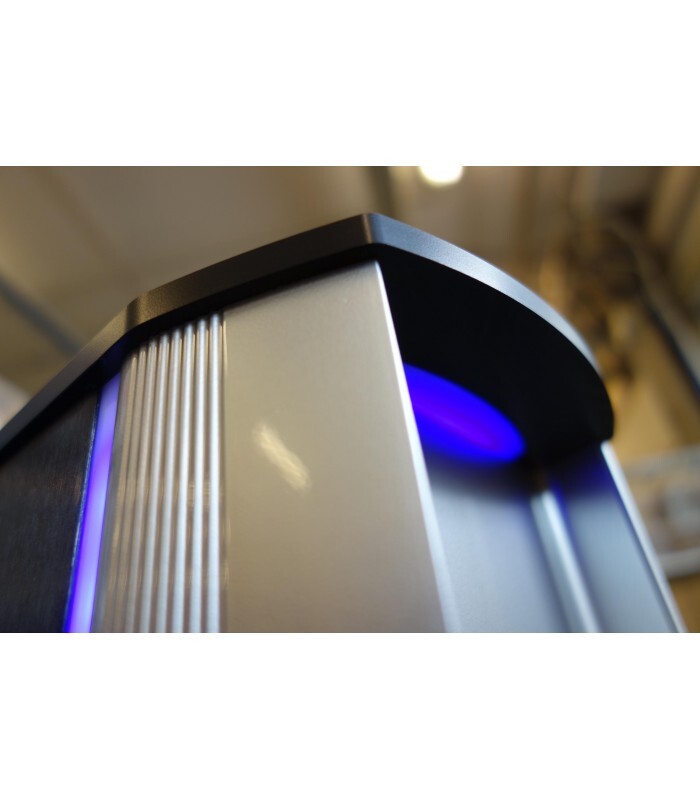

• Robust aluminum casing

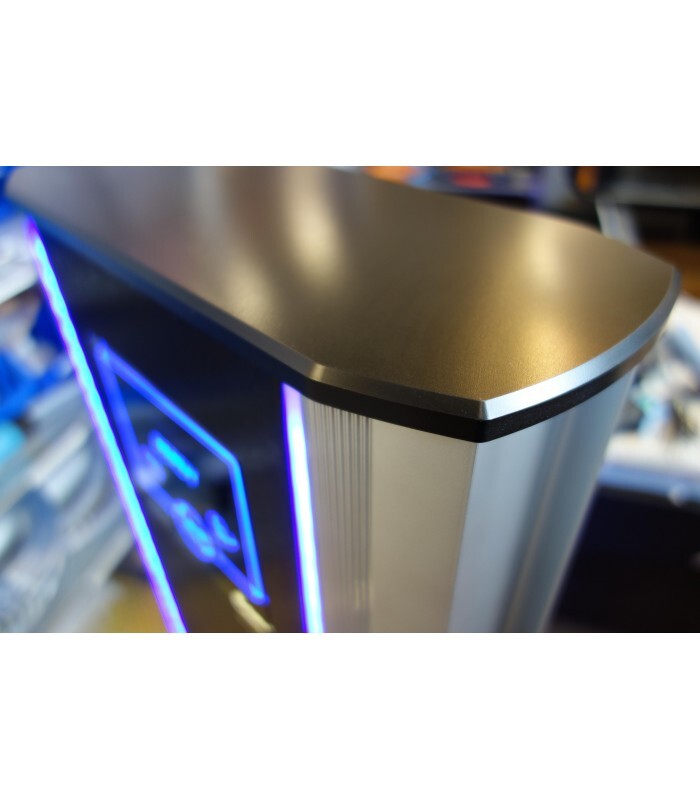

• Bright LED screen
• RFID authorization
• 3G / WiFi / Ethernet / OCPP communication
• Elios.cloud web administration
• Attractive design

Weight 37 kg
Dimensions 350 × 1370 × 150 mm
Socket Type

Mode 2—CEE 7/4 (Schuko), Mode 3—IEC 62196 (Type 2)

Power

3.6 kW, 7.2 kW, 11 kW, 22 kW

Power Supply

1-Phase, 3-Phase

Energy Meter

Digital with backlight

RFID User Access Control

Optional

Communication

3G, WiFi, Ethernet, OCPP, Elios.cloud

LED Screen

Integrated

LED Status Indication

Integrated

Installation

Ground mounting

Operational Temperature

-30 °C to +50 °C

Degree of Protection

IP54

Impact Resistance

IK10

Vandalism-Proof

Yes

Housing

Aluminium

UV Resistant

Yes

Certificate

CE

Standard

IEC 61851-1

Charging Cable Locking

Optional

Overcurrent Protection

Integrated

Leakage Current Protection

Integrated

Warranty

24 months
