Schuko to Type 2 EV adapter 16A
Click to enlarge

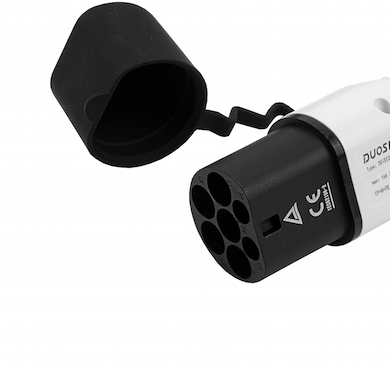

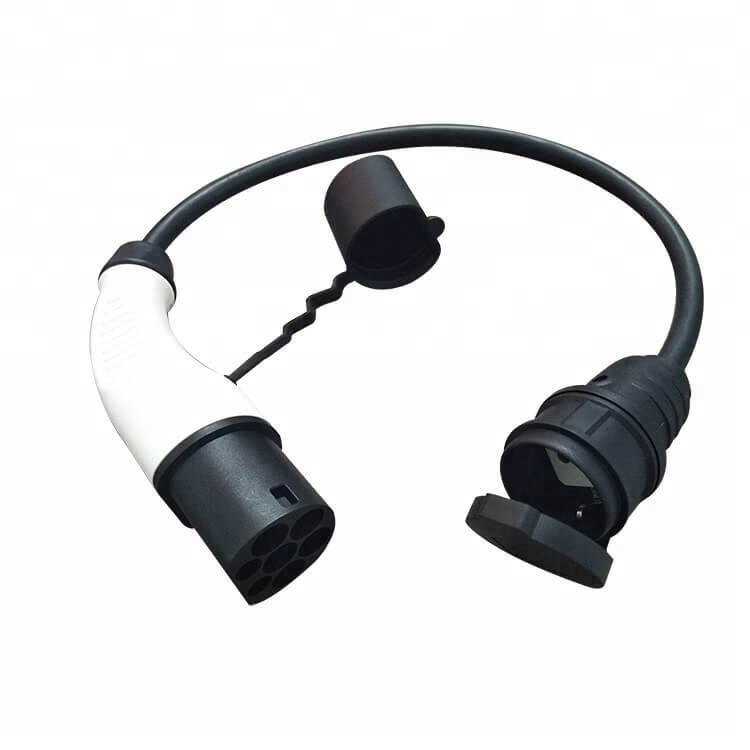

Schuko to Type 2 EV adapter 16A
Schuko to Type 2 adapter (IEC 62196). This adapter is suitable for any EV that uses a Schuko charging cable and wants to charge from a Type 2 charging station.

EV adapter for your electric vehicle, electric motorbike or scooter. This adapter helps to charge an EV with a Schuko connector (plug) to a Type 2 charging station. It is useful to use this adapter when you have a Schuko cable and you want to charge from a private or public charging station with Type 2 output. Also with this adapter, you can connect the car’s engine heating system in your vehicle using your EV charging station.

There is no direct communication with the charging station. This cable is to be used with charging stations that have a function to stop the charging manually.

Weight 1 kg
Plug Type

Schuko

Power Supply Plug

IEC 62196 (Type 2-Male)

Power

3.6 kW

Maximum Current

16 A

Power Supply

1-Phase

Operational Voltage

230 V/AC

Operational Temperature

-30 °C to +50 °C

Degree of Protection

IP44

Vandalism-Proof

No

UV Resistant

Yes

Certificate

CE, TUV, UL

Contacts

Copper alloy

Cable Material

Thermoplastic

Cable Length

0.5 m

Manufacturer

Duosida (China)

Warranty

12 months
