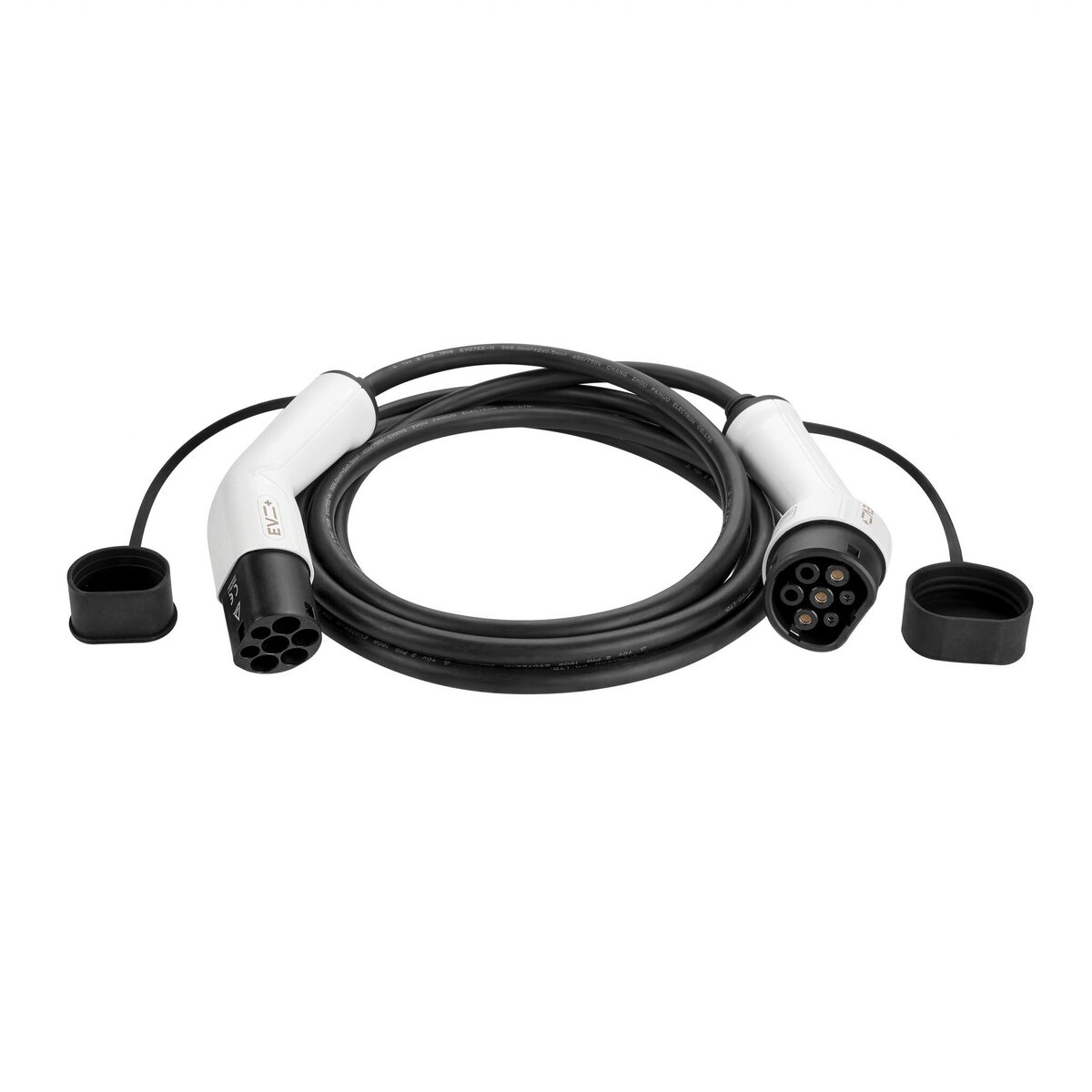

EV Charging Cable Type 2 to Type 2 32A 1 Phase 8m
Click to enlarge
EV Charging Cable Type 2 to Type 2 32A 1 Phase 8mEV Charging Cable Type 2 to Type 2 32A 1 Phase 8m
EV charging cable Type 2 to Type 2 32A.
This cable is 8 meters long and Type 2 (32A). It is lightweight and ultra-flexible making it easy to store and transport. IP55 rated.

With this cable, you can charge your EV/PHEV that has Type 2 port with an EV charging station that has Type 2 socket. The cable is 32 Amp, single-phase, can charge your EV up to 7.2 kW. The product has a nice appearance, a hand-held ergonomic design and is easy to plug. The working length is 8 meters and is made from thermoplastic material. It has protection level IP55, is anti-flaming, pressure-resistant, abrasion-resistant and impact resistant.

Weight 1.5 kg
Plug Type

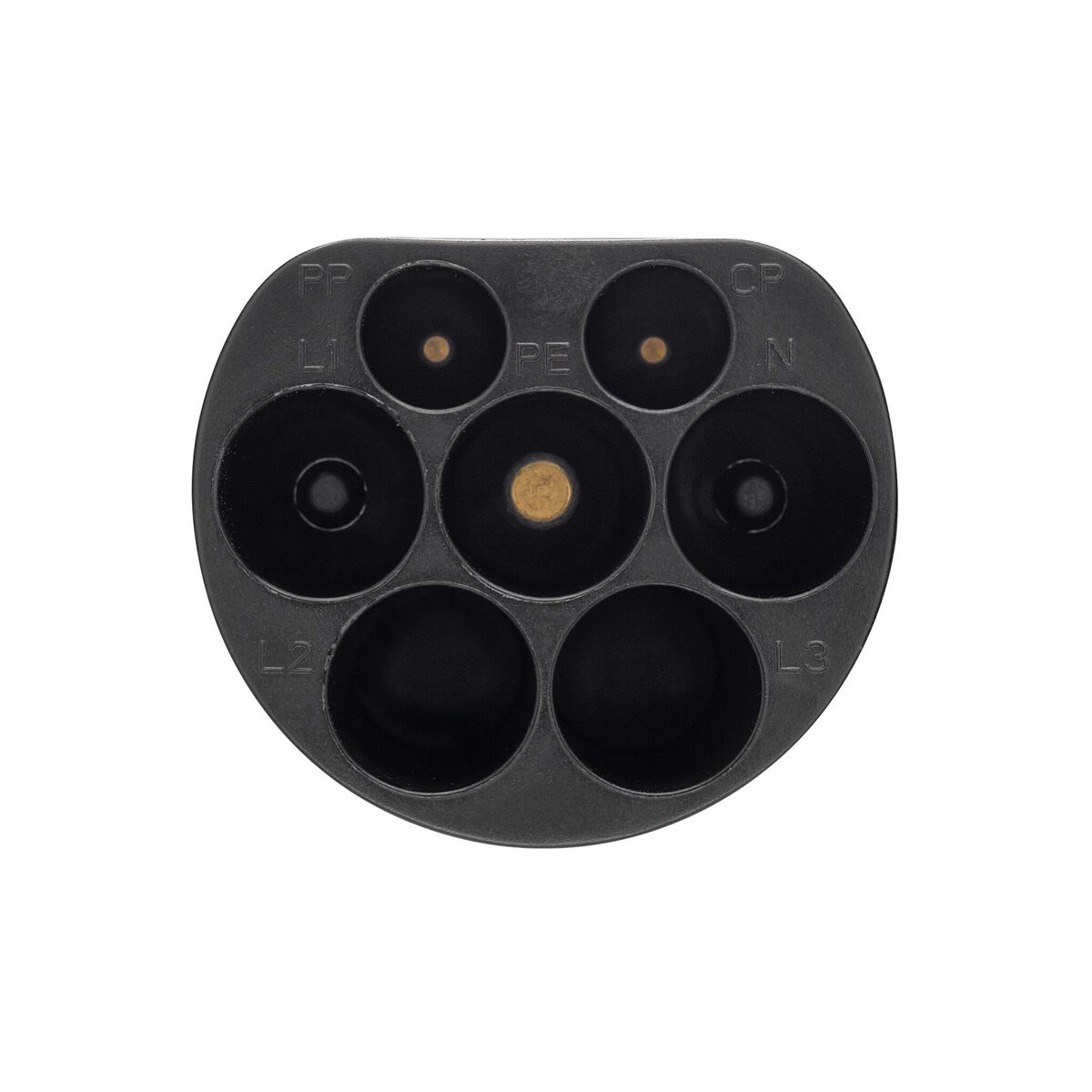

IEC 62196 (Type 2-Female)

Power Supply Plug

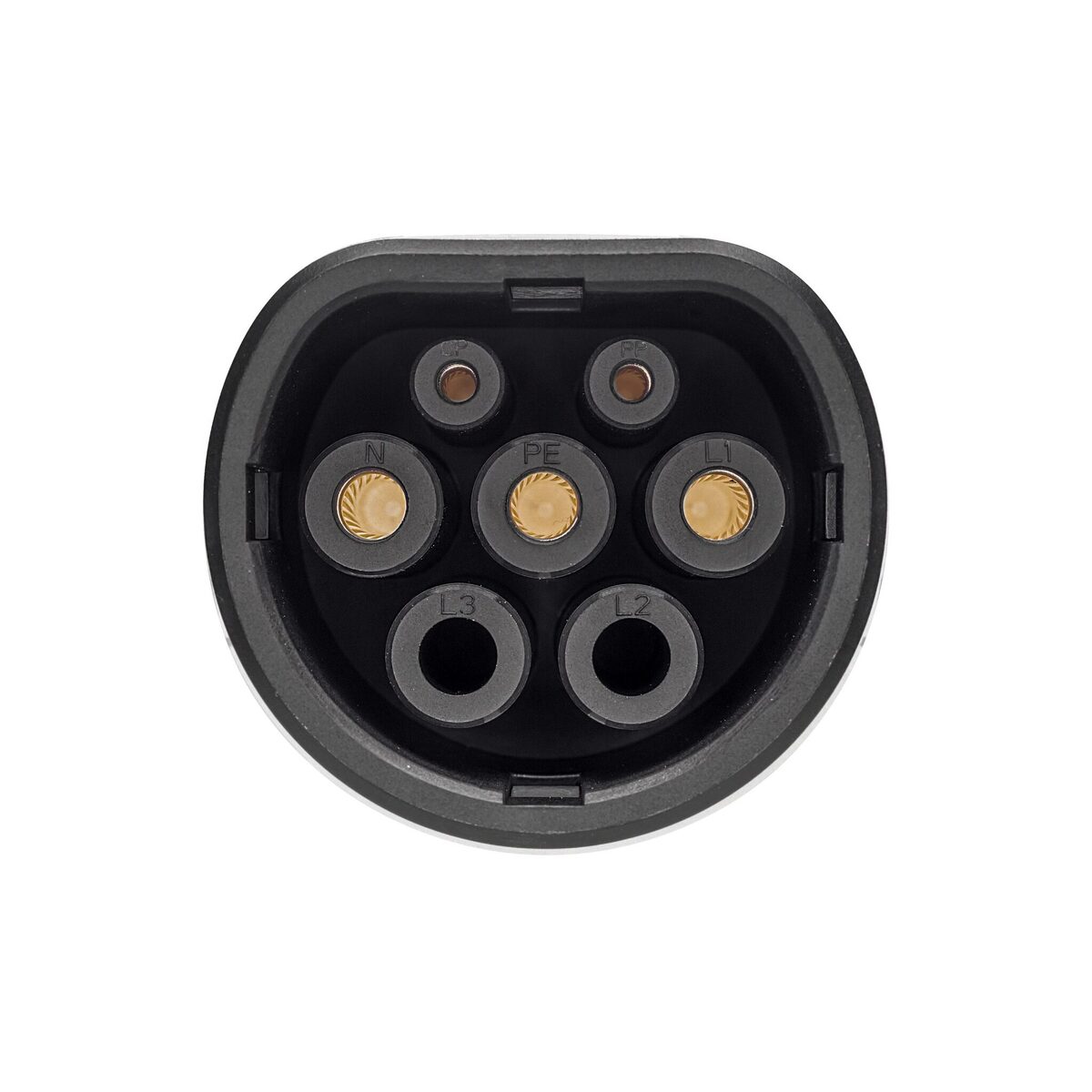

IEC 62196 (Type 2-Male)

Power

7.2 kW

Maximum Current

32 A

Power Supply

1-Phase

Operational Voltage

250 V/AC

Operational Temperature

-30 °C to +50 °C

SPEC

3G6.0mm²+2×0.5mm²

Degree of Protection

IP55

Vandalism-Proof

No

UV Resistant

Yes

Certificate

CE

Cable Material

Thermoplastic

Manufacturer

EV+ (China)

Warranty

12 months
