EV Charging Cable Type 1 to Type 2 Spiral 16A 1 Phase 8m
Click to enlarge
EV Charging Cable Type 1 to Type 2 Spiral 16A 1 Phase 8mEV Charging Cable Type 1 to Type 2 Spiral 16A 1 Phase 8m

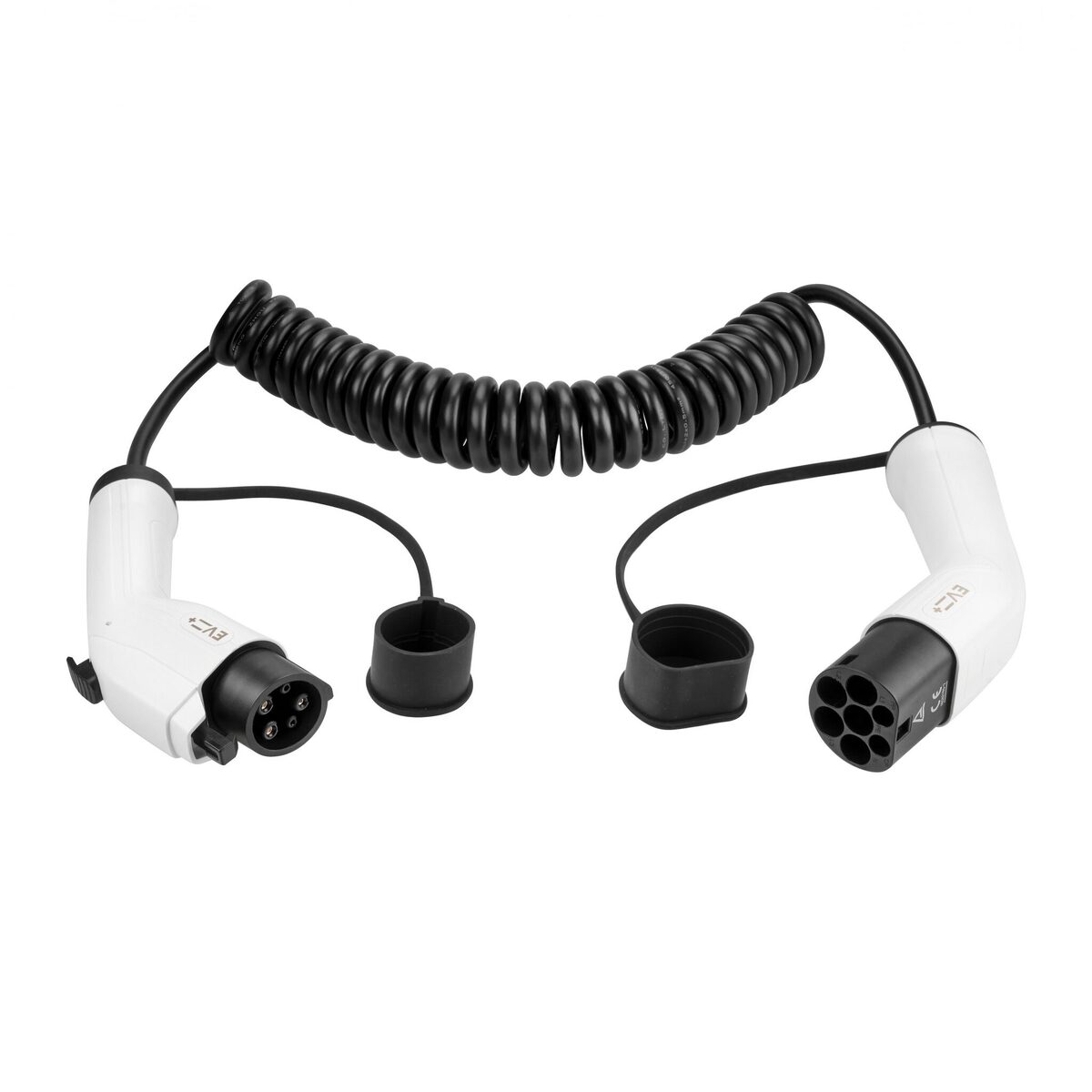

Spiral EV charging cable Type 1 to Type 2 16A.
This cable is 8 meters long and Type 1 (16A). It is lightweight and ultra-flexible making it easy to store and transport. IP55 rated.

With this spiral cable, you can charge your EV/PHEV that has Type 1 port with an EV charging station that has Type 2 socket. The cable is 16 Amp, single-phase, can charge your EV up to 3.6 kW. The product has a nice appearance, a hand-held ergonomic design and is easy to plug. The working length is 8 meters and is made from thermoplastic material. It has protection level IP55, is anti-flaming, pressure-resistant, abrasion-resistant and impact resistant.

Weight 1.5 kg
Plug Type

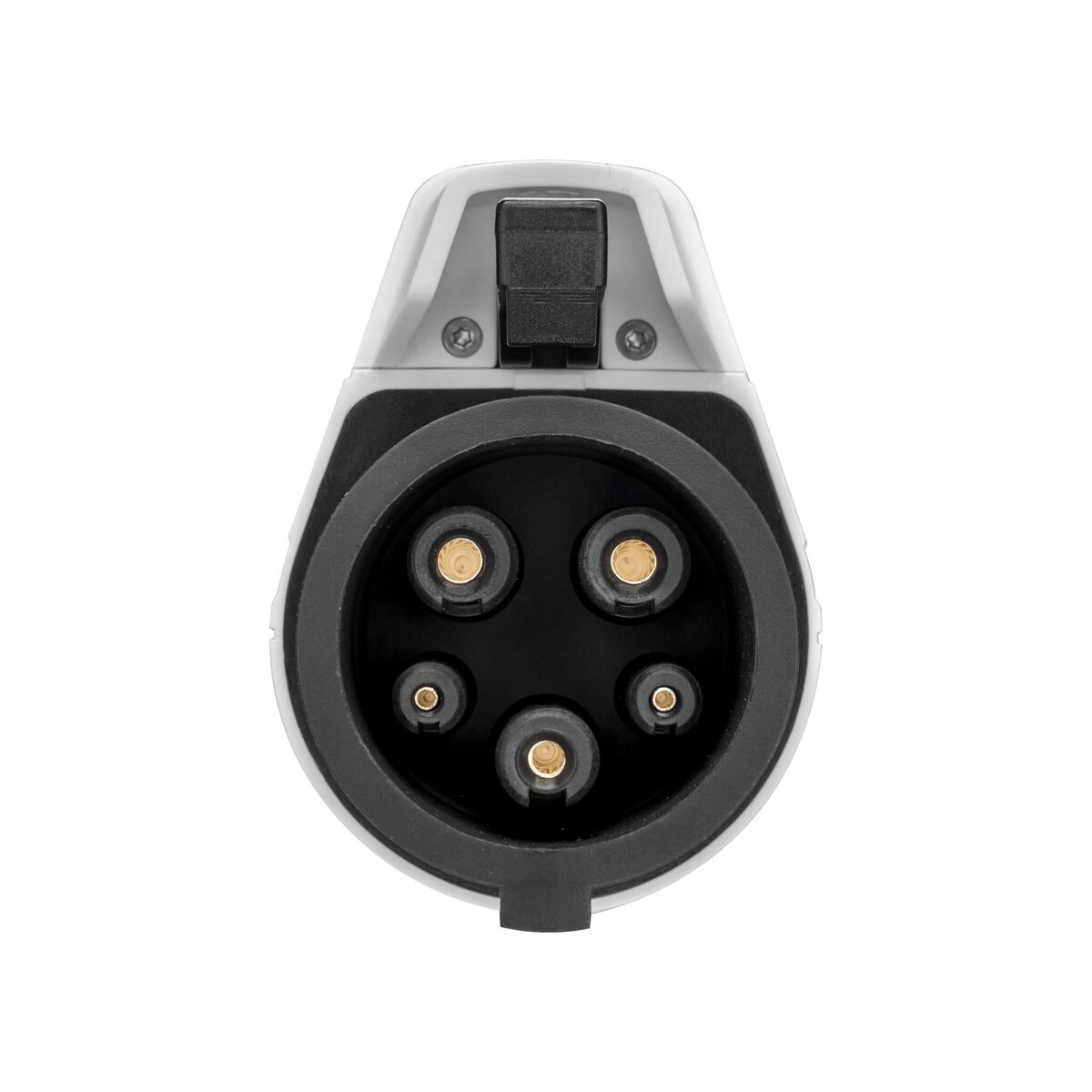

SAE J1772 (Type 1-Female)

Power Supply Plug

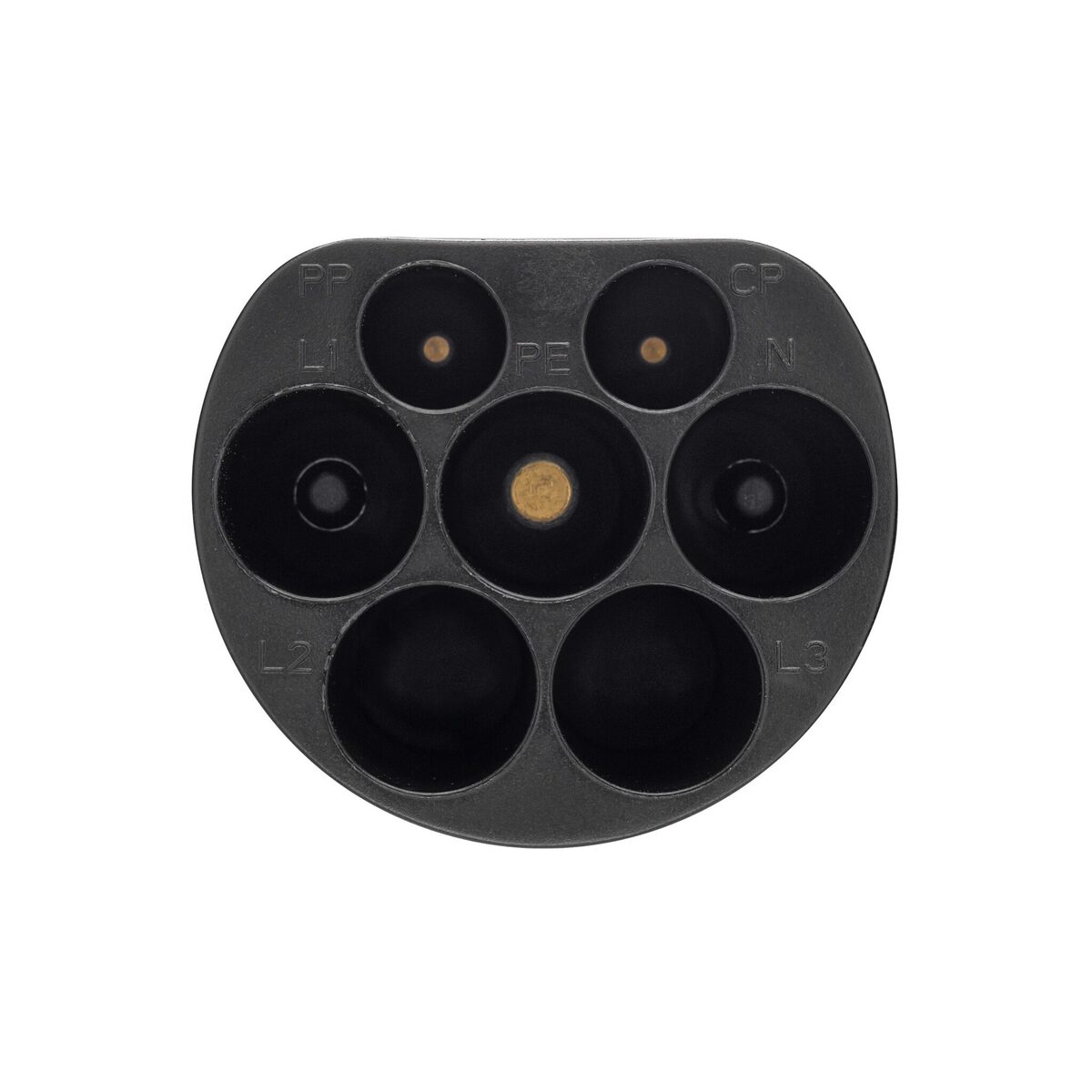

IEC 62196 (Type 2-Male)

Power

3.6 kW

Maximum Current

16 A

Power Supply

1-Phase

Operational Voltage

250 V/AC

Operational Temperature

-30 °C to +50 °C

SPEC

3G2.5mm²+2×0.5mm²

Degree of Protection

IP55

Vandalism-Proof

No

UV Resistant

Yes

Certificate

CE

Cable Material

Thermoplastic

Cable Length

8 m

Manufacturer

EV+ (China)

Warranty

12 months
