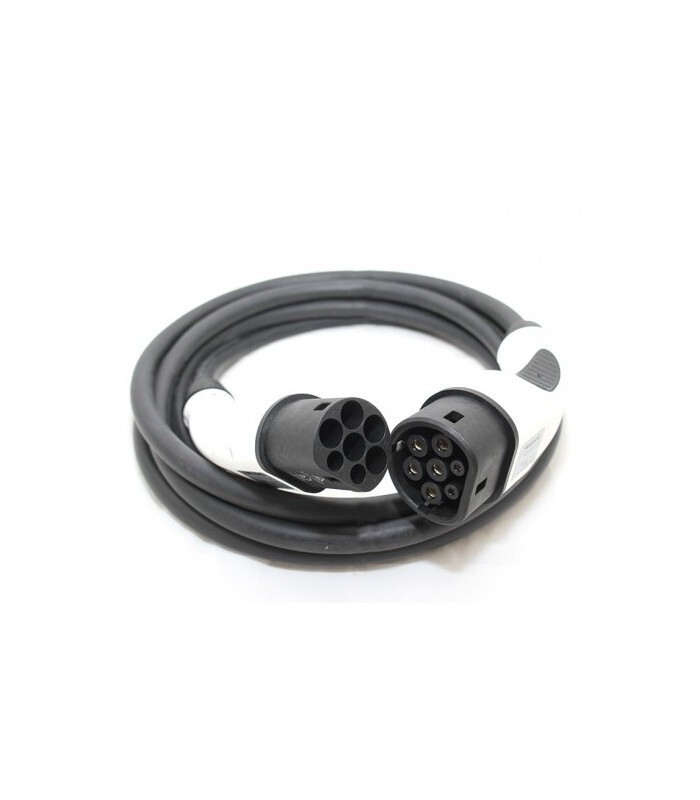

EV Charging Cable Type 2 to Type 2 16A 3 Phase 5m
Click to enlarge
EV charging cable Type 2 to Type 2 16 A.
This cable is 5 meters long and Type 2 (16 A). It is lightweight and ultra-flexible making it easy to store and transport. IP44 rated.

With this cable, you can charge your EV/PHEV that has Type 2 port with an EV charging station that has Type 2 socket. The cable is 16 Amp, 3-phase, can charge your EV up to 11 kW. The product has a nice appearance, a hand-held ergonomic design and is easy to plug. The working length is 5 meters and is made from thermoplastic material. It has protection level IP44, is anti-flaming, pressure-resistant, abrasion-resistant and impact resistant.

Weight 4 kg
Plug Type

IEC 62196 (Type 2-Female)

Power Supply Plug

IEC 62196 (Type 2-Male)

Power

11 kW

Maximum Current

16 A

Power Supply

3-Phase

Operational Voltage

240 V/AC

Operational Temperature

-30 °C to +50 °C

SPEC

5G2.5mm²+2×0.5mm²

Degree of Protection

IP44

Vandalism-Proof

No

UV Resistant

Yes

Certificate

CE, TUV, UL

Contacts

Copper alloy

Cable Material

Thermoplastic

Cable Length

5 m

Manufacturer

Duosida (China)

Warranty

12 months
