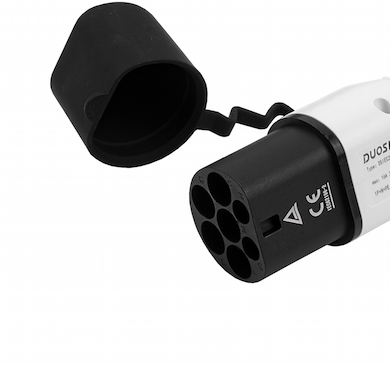

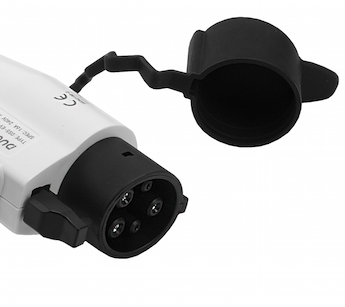

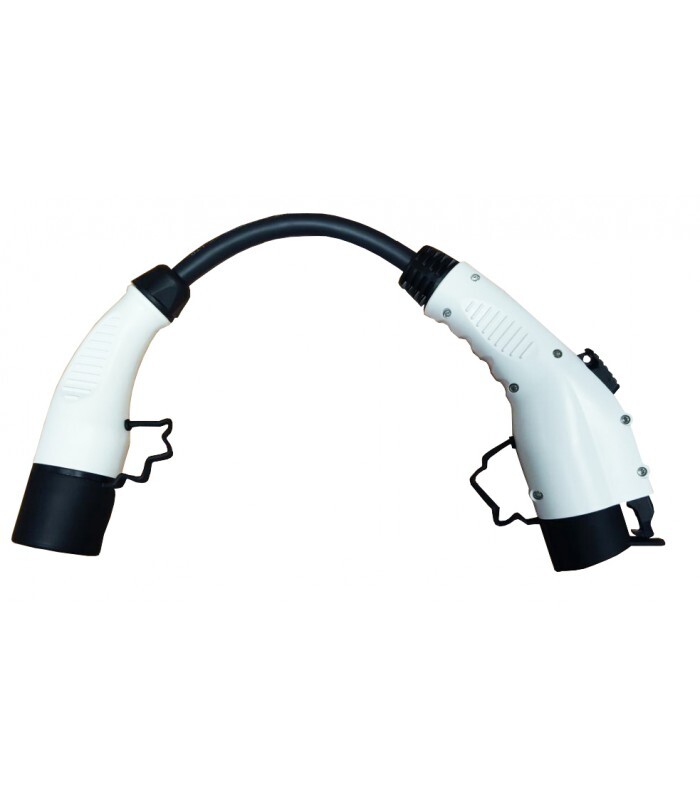

Type 1 to Type 2 adapter for EV charging cable
Click to enlarge
Type 1 to Type 2 adapter for EV charging cableType 1 to Type 2 adapter for EV charging cable
EV charging adapter that connects Type 2 cable to Type 1 EV’s port.

EV adapter for your electric vehicle (EV/PHEV). With this adapter, you can connect any Type 2 cable from a charging station to a Type 1 electric car port. Compatible with private or public charging stations. The product has a nice appearance, a hand-held ergonomic design and is easy to plug. The adapter’s cable length is 20 cm and is made from thermoplastic material. It has protection level IP44, is anti-flaming, pressure-resistant, abrasion-resistant and impact resistant. It is small, perfect for traveling and easy to store.

Weight 1 kg
Plug Type

SAE J1772 (Type 1-Female)

Power Supply Plug

IEC 62196 (Type 2-Male)

Power

7.2 kW

Maximum Current

32 A

Power Supply

1-Phase

Operational Voltage

240 V/AC

Operational Temperature

-30 °C to +50 °C

SPEC

3G6.0mm²+2×0.5mm²

Degree of Protection

IP44

Vandalism-Proof

No

UV Resistant

Yes

Certificate

CE, TUV, UL

Contacts

Copper alloy

Cable Material

Thermoplastic

Cable Length

0.2 m

Manufacturer

Duosida (China)

Warranty

12 months
